Underfill

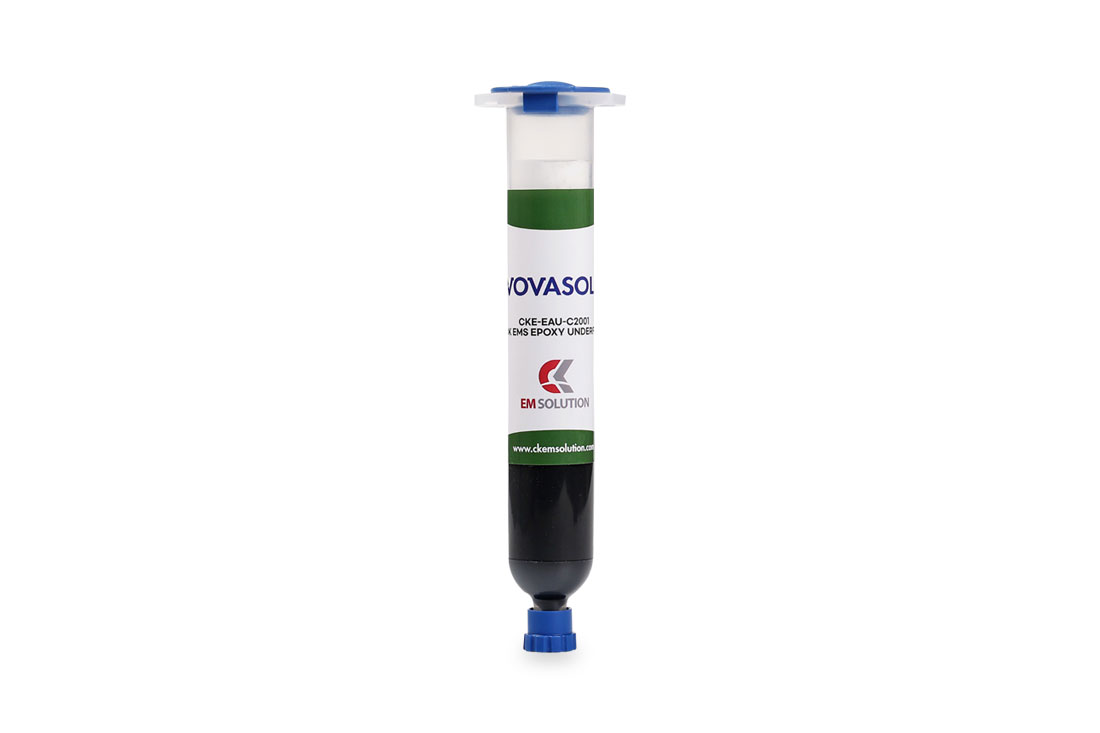

Underfill
High Purity Epoxy와 Acid anhydride 로 구성된 1액형 제품
Low Bump Height(8~12㎛)에 적용이 가능한 Non-Filler 형태
Good Flowability
고객 요구에 맞춘 사양 조절 및 공정 Solution 제공
적용
제품
LCD TV, Mobile Phone, 모니터 등의 Display용 Drive IC 에 적용
적용
방법
Dispensing syringe, 150℃ 2hr 경화
적용제품
LCD TV, Mobile Phone, 모니터 등의 Display용 Drive IC 에 적용
적용방법
Dispensing syringe, 150℃ 1hr 경화
SPEC
swipe
좌, 우 드래그가능
Product Name
CKE-EAU
Note
Color
Black
-
Density
1.1 ± 0.1
ASTMD1475
Viscosity (cps)
400 ± 100
ASTMD2196
Gel Time
120 ± 40sec
At 130℃
Tg
130 ± 20℃
ASTMD3418
CTE
α1
80 ± 10 ppm/℃
ASTME831
α2
200 ± 50 ppm/℃
Flexural modulus (GPa)
3.0 ± 0.5
ASTMD790
Flexural strength (MPa)
80 ± 20
ASTMD790
Volume resistivity (Ωcm)
> 1 x 10
14
ASTMD257
Cure condition
Pre-cure
130 ~ 150℃ / 8~12min
-
Post-cure
150℃ / 1hrs
-
Work life
25%
After 24hrs @ 25℃
Shelf life
6 month
≤ -20℃
EMC
SOLUTION

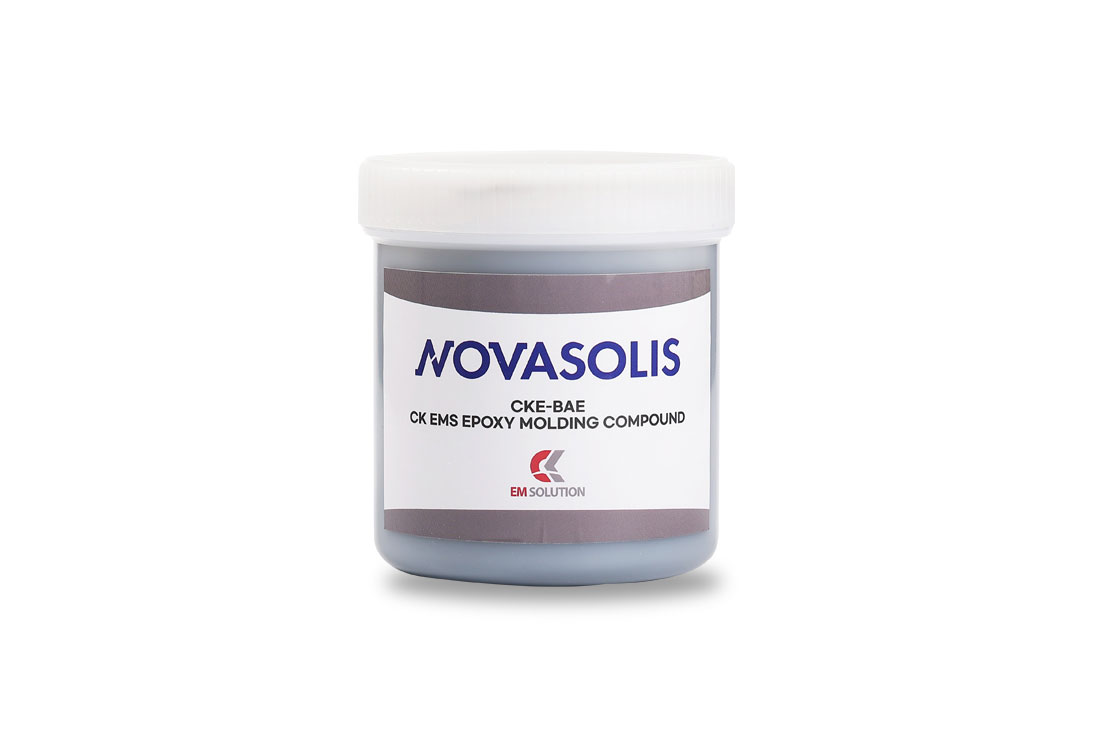

EMC (Epoxy Molding Compaound)
우수한 유동성으로 넓은 면적 및 박막 금형에 적합
저온 성형 가능(120℃)
낮은 응력 설계로 넓은 금형에서 낮은 warpage 구현
고객 요구에 맞춤 사양 조절 및 공정 solution 제공
SPEC
swipe
좌, 우 드래그가능
Product Name
CKE-BAE
Type
Compress Mold
Color
Black
Filler content
%
85
Filer size (aver/cut)
um
6 / 20
Viscosity
Pa.s
450 ~ 550
Gel Time (at 120℃)
sec
160 ± 00
CTE (ppm/℃)
α1
10 ± 2
α2
40 ± 5
Tg
℃
155
Modulus
GPa
16
Mold Shrinkage
Mold
%
-0.07
PMC
-0.04
Bake
-0.04
Volume resistivity
Ωcm
>1.0 × 10
13
Storage condition
Below -20℃
Self life
6 month
